Description

Overview

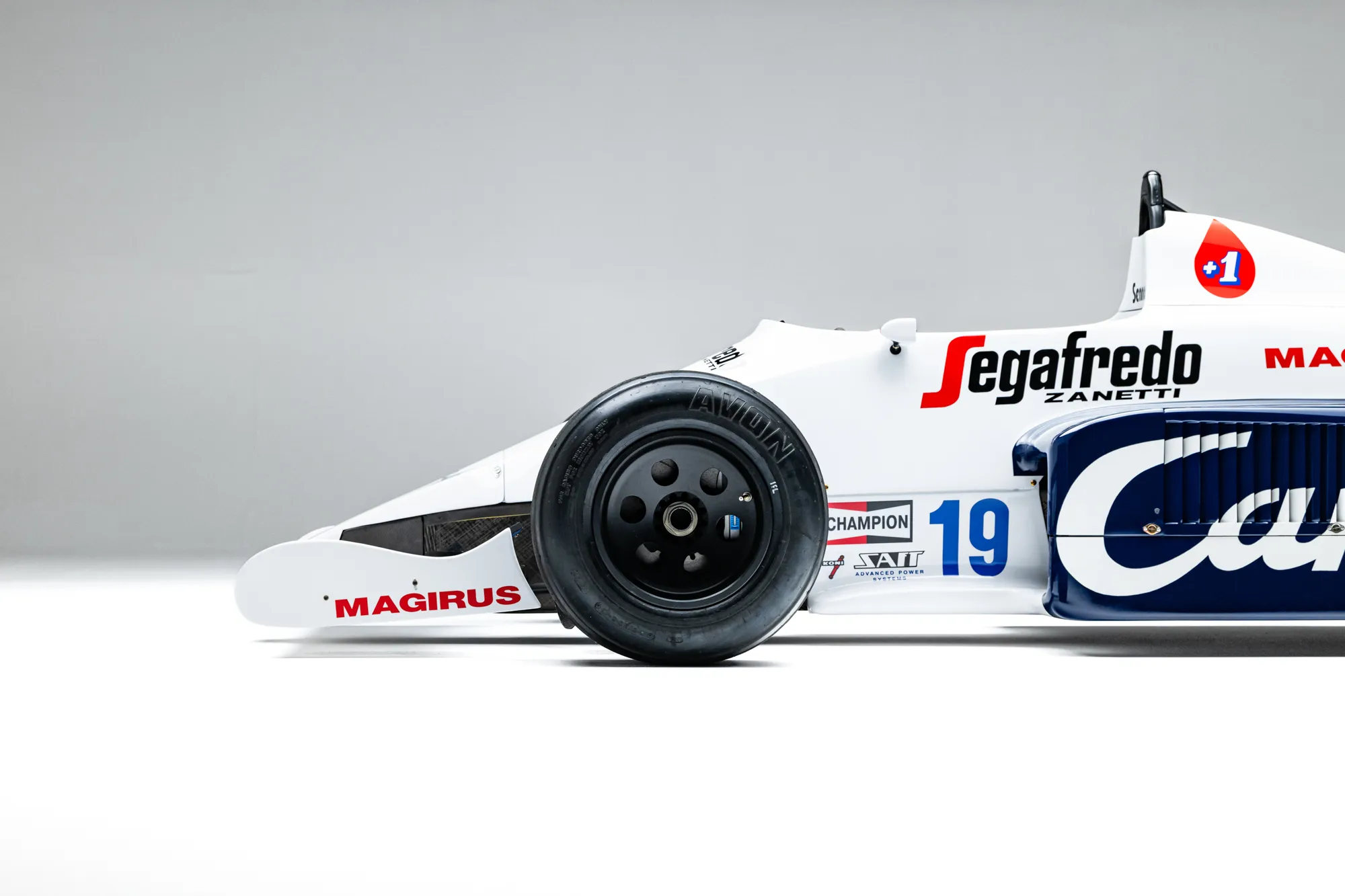

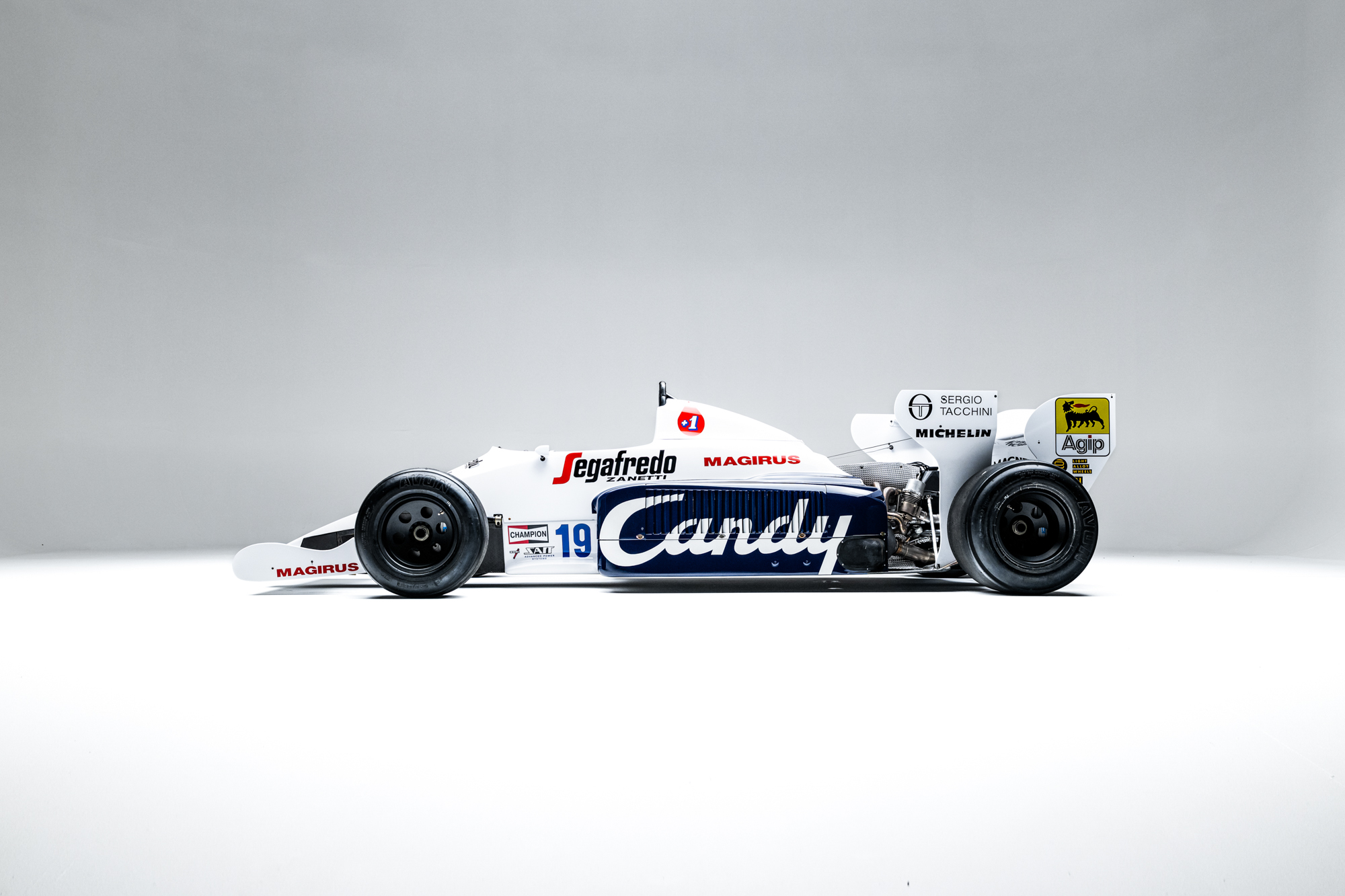

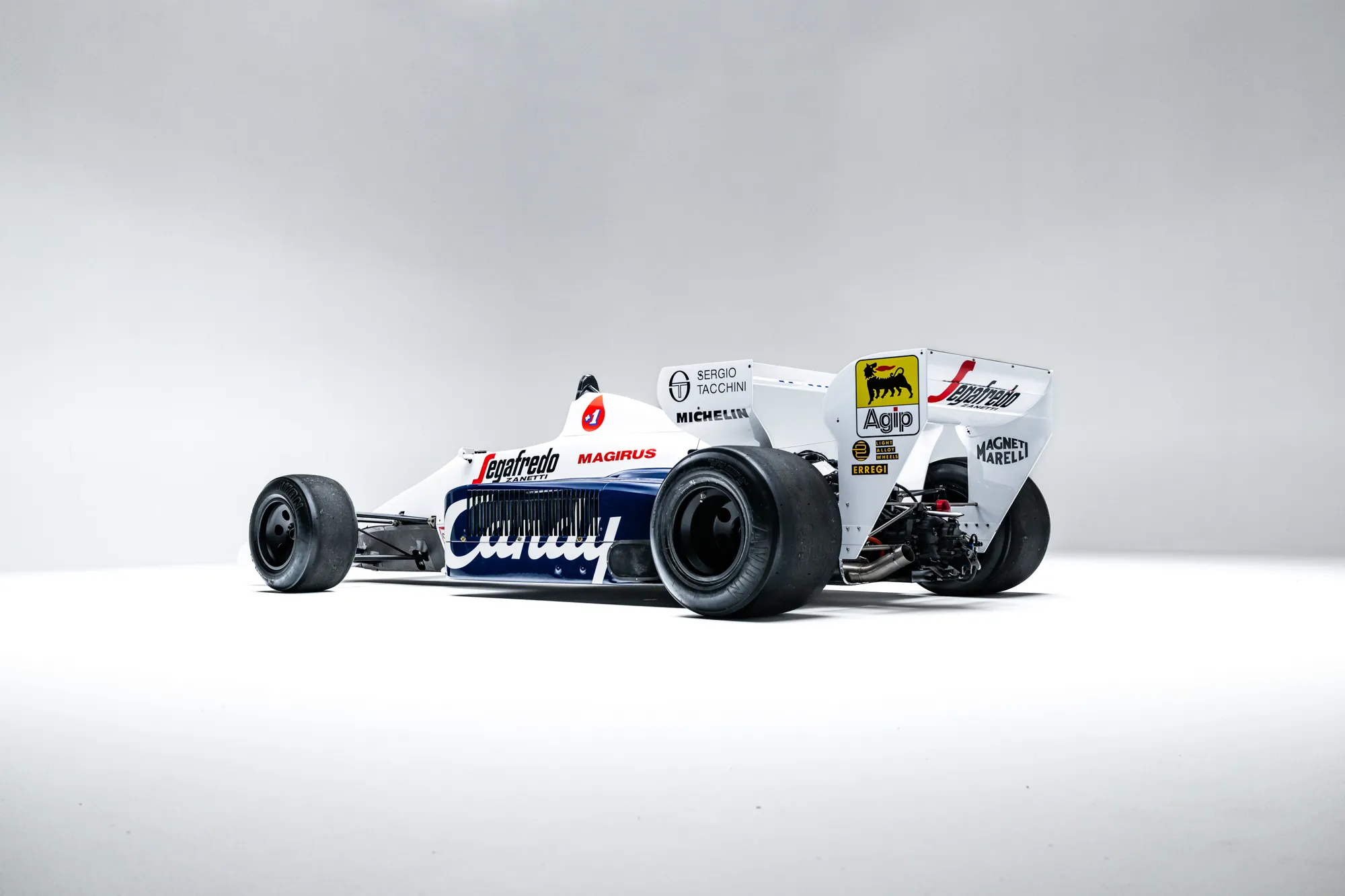

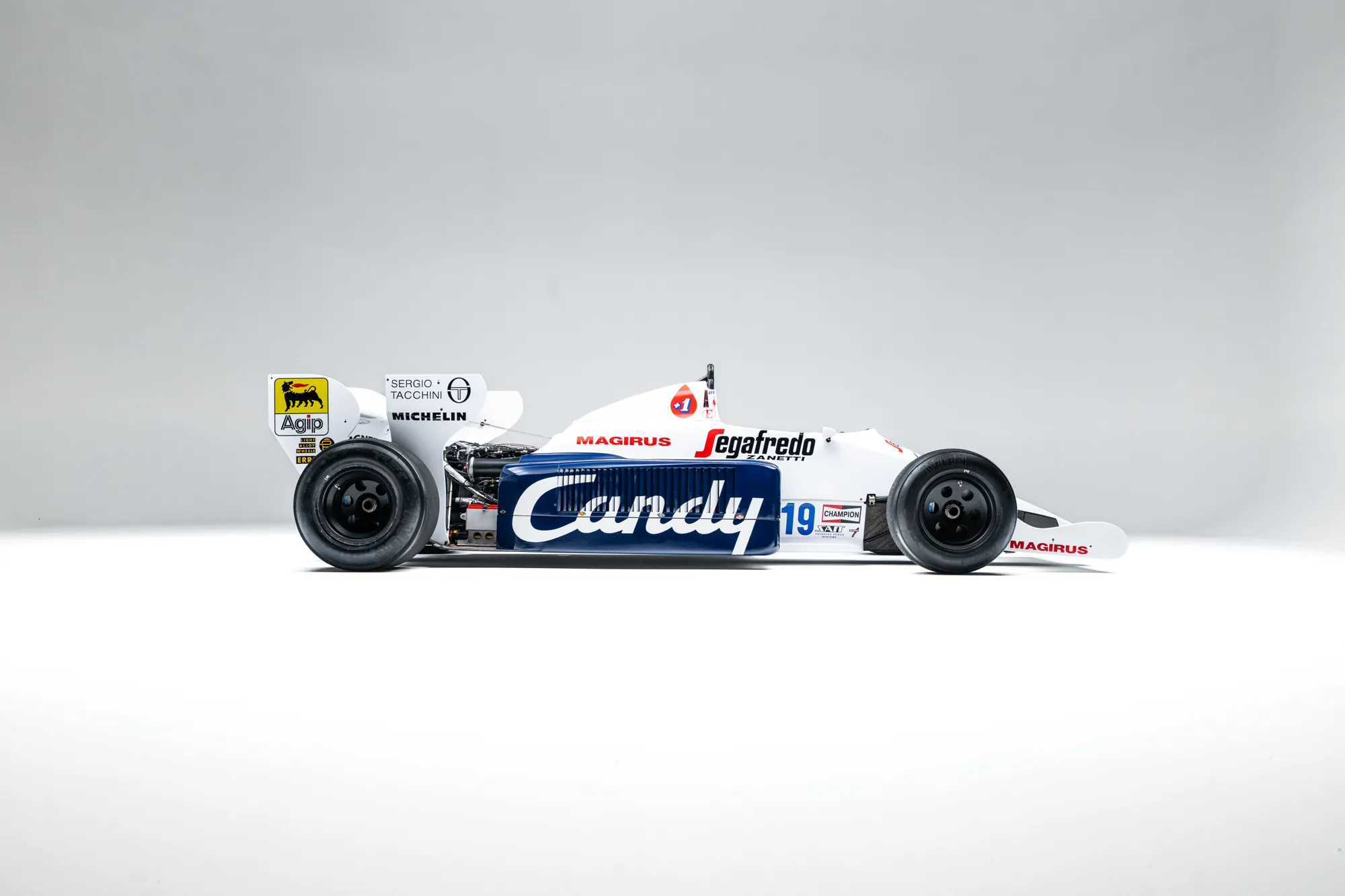

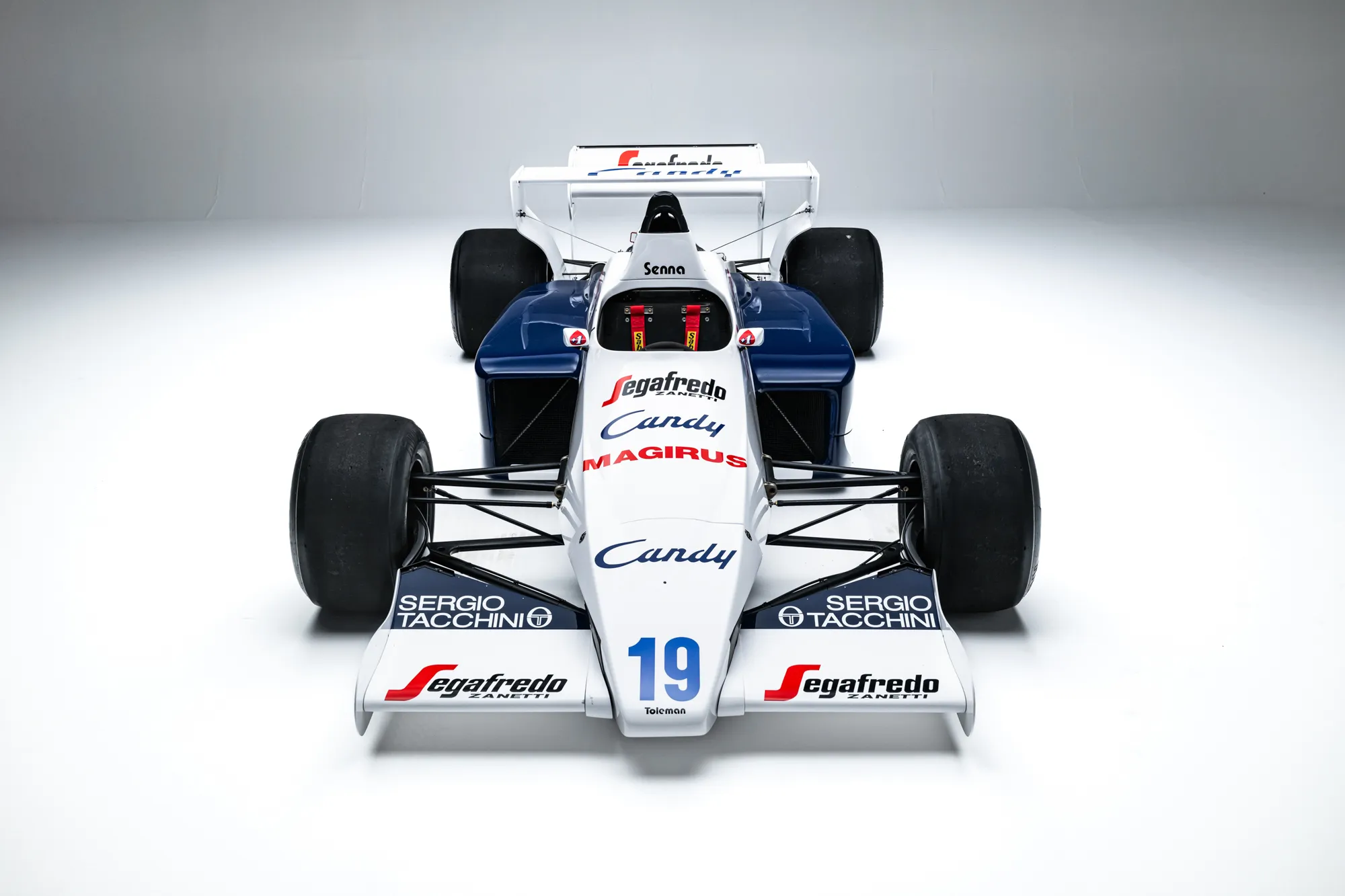

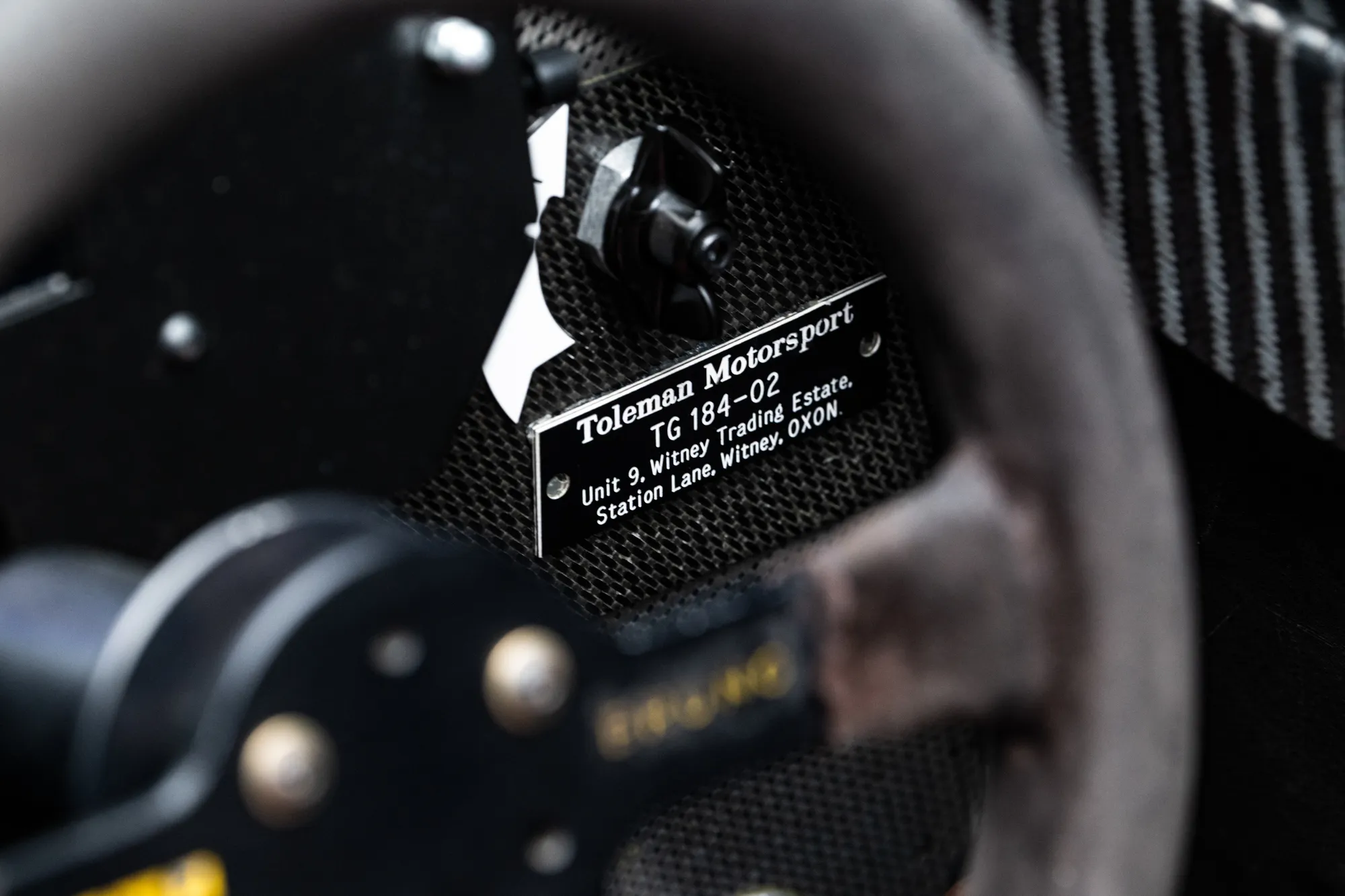

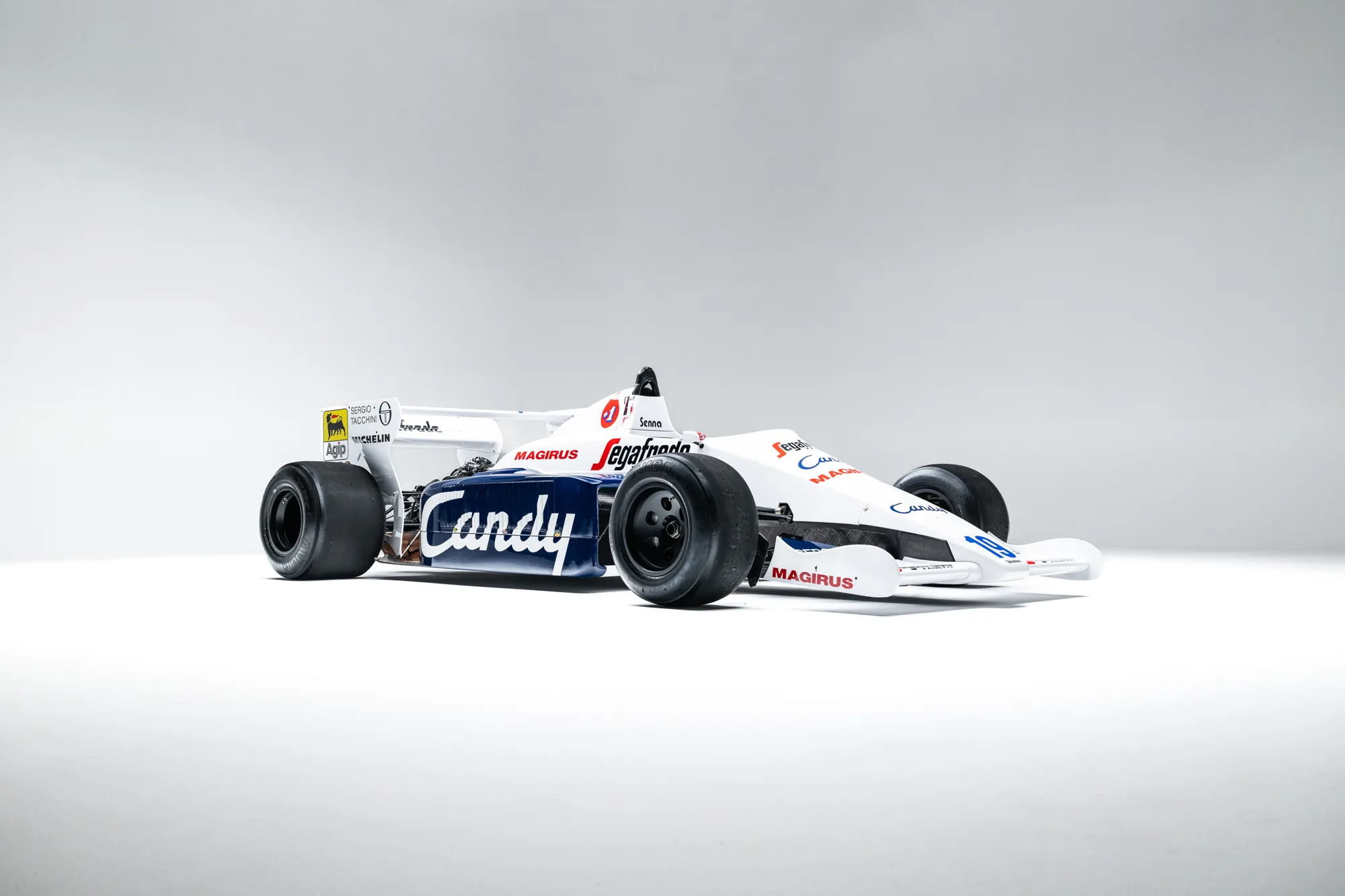

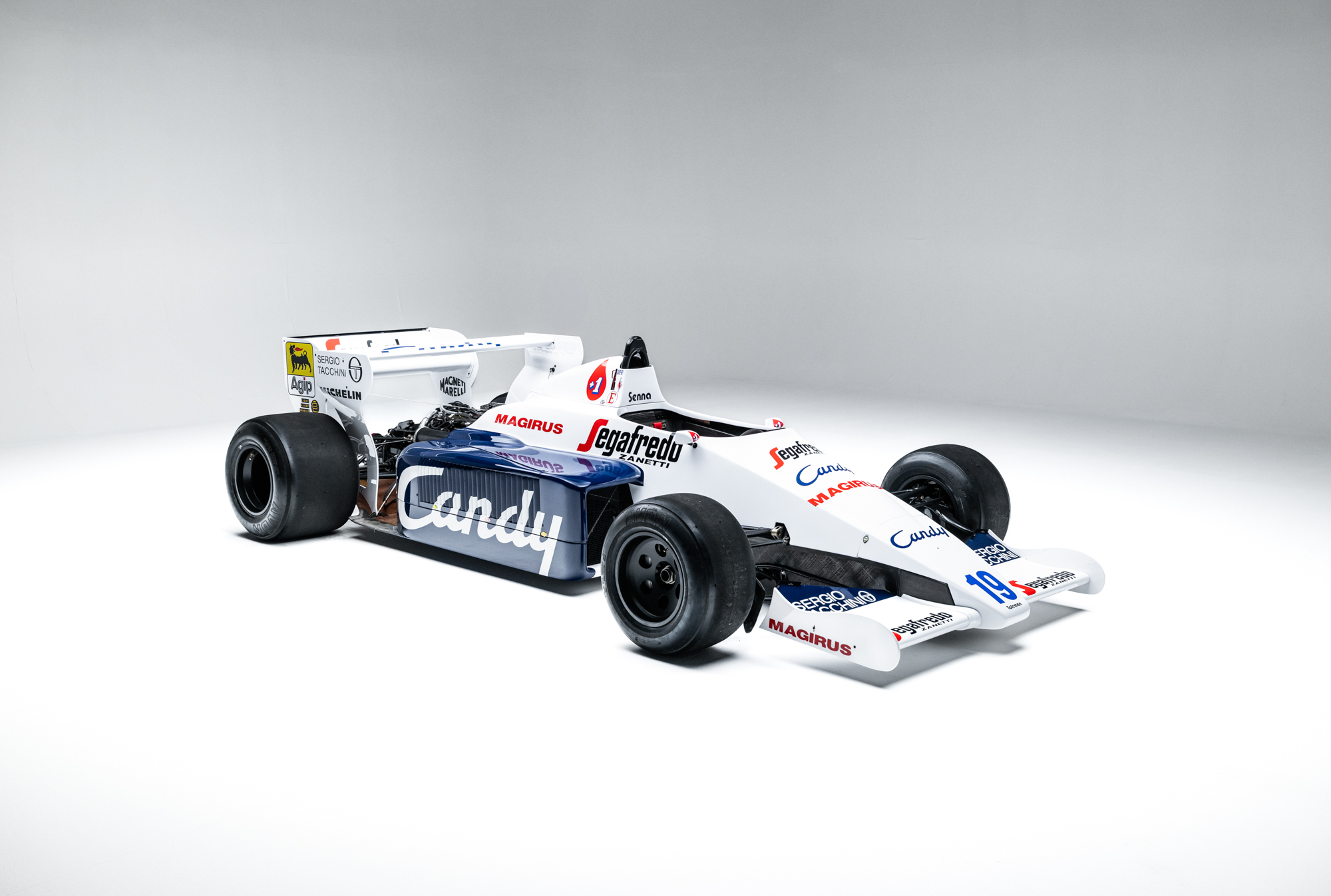

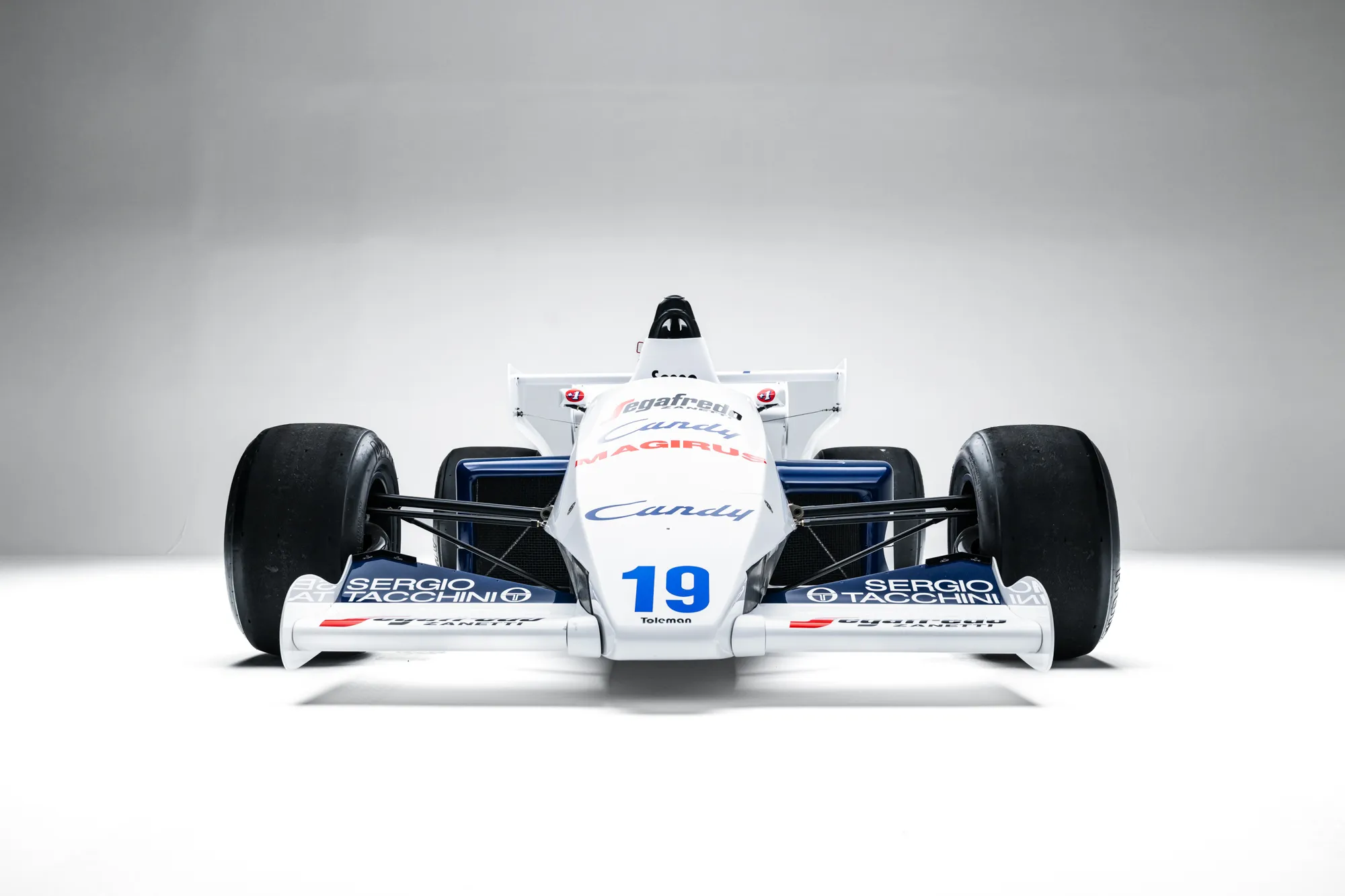

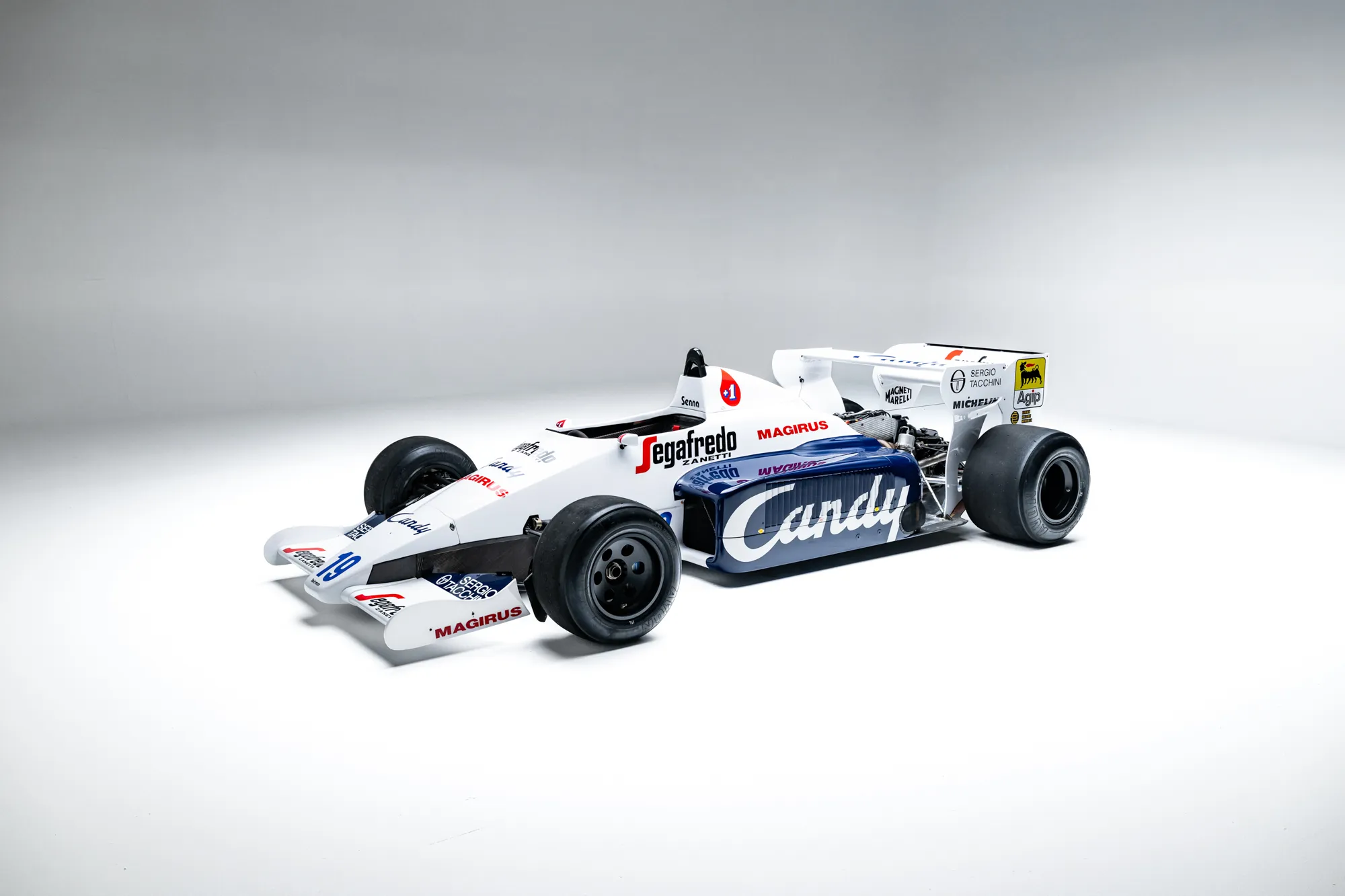

This 1984 Toleman TG184, chassis 02, is presented as a works Formula One chassis from Toleman’s Hart‑powered TG184 program. The TG184 model arrived mid‑season in 1984 and scored all 16 of Toleman’s Constructors’ Championship points that year, defining the team’s final campaign under its own name. Chassis 02 served as Ayrton Senna’s primary race car at Monaco and Brands Hatch, then rotated through race and T‑car duties during the remainder of the season. Within the TG184 batch, it represents one of a limited number of carbon‑fibre honeycomb tubs built by the small Witney/Banbury operation, where each chassis carried race, test, and spare responsibilities.

Model Background

The TG184 program followed Toleman’s TG183B, which delivered a late‑season points surge in 1983 but required a comprehensive aerodynamic reset for 1984. Regulatory changes introduced a 220‑liter fuel limit and FIA pop‑off valves, pushing teams to reduce drag and manage turbo efficiency rather than rely solely on peak boost. Budget constraints, tyre supply disputes, and limited wind‑tunnel access led Toleman to run the TG183B for the first four races, skip Imola, and bring the new TG184 only from the French Grand Prix onward. Designed under Rory Byrne with Pat Symonds in race engineering, the TG184 consolidated vertical radiator packaging, simplified wings, and revised underbody management into a cleaner, more adaptable platform. The chassis underpinned the team’s visibility that season and fed directly into the technical philosophy later developed under Benetton control.

Design & Engineering

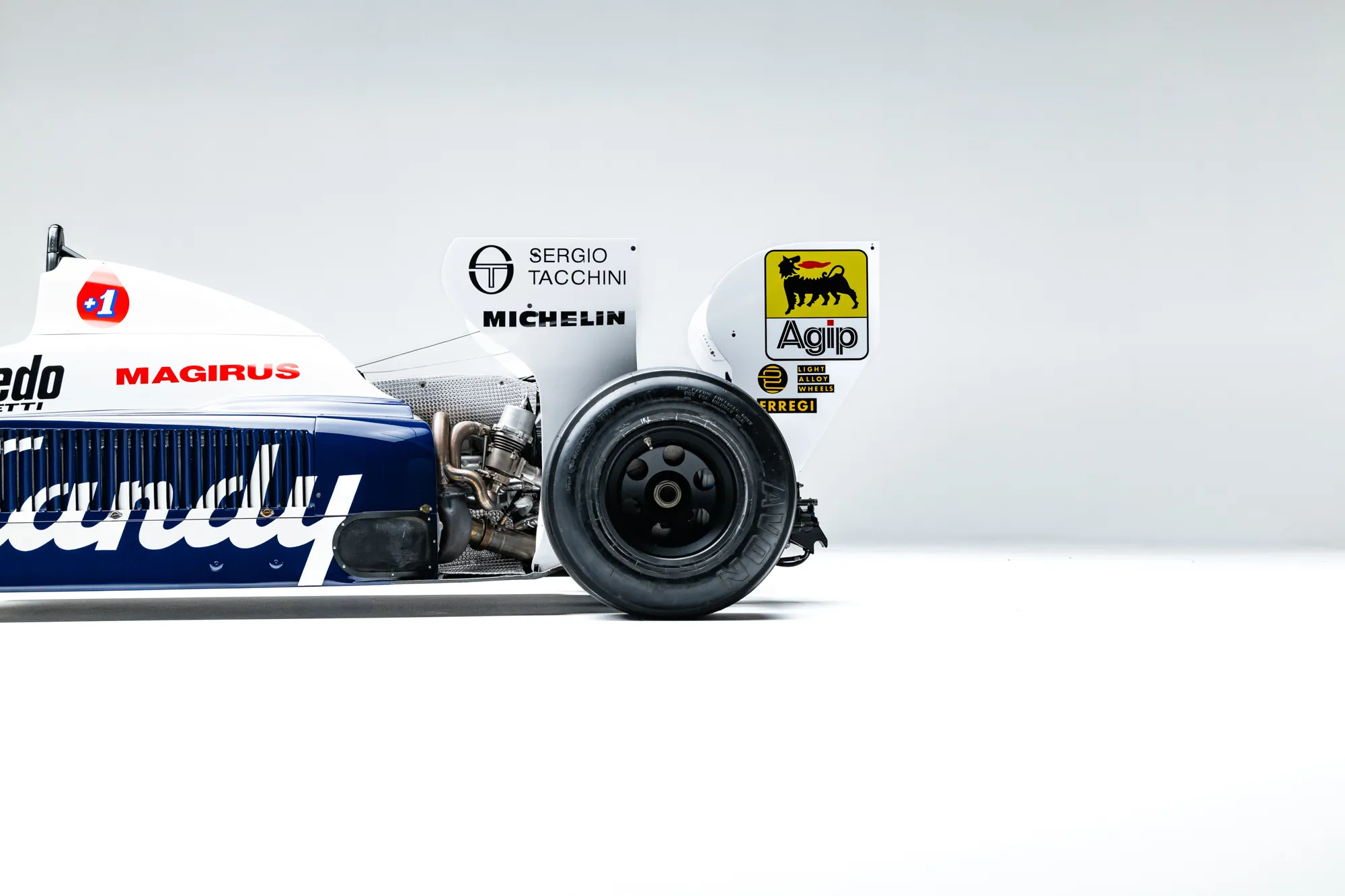

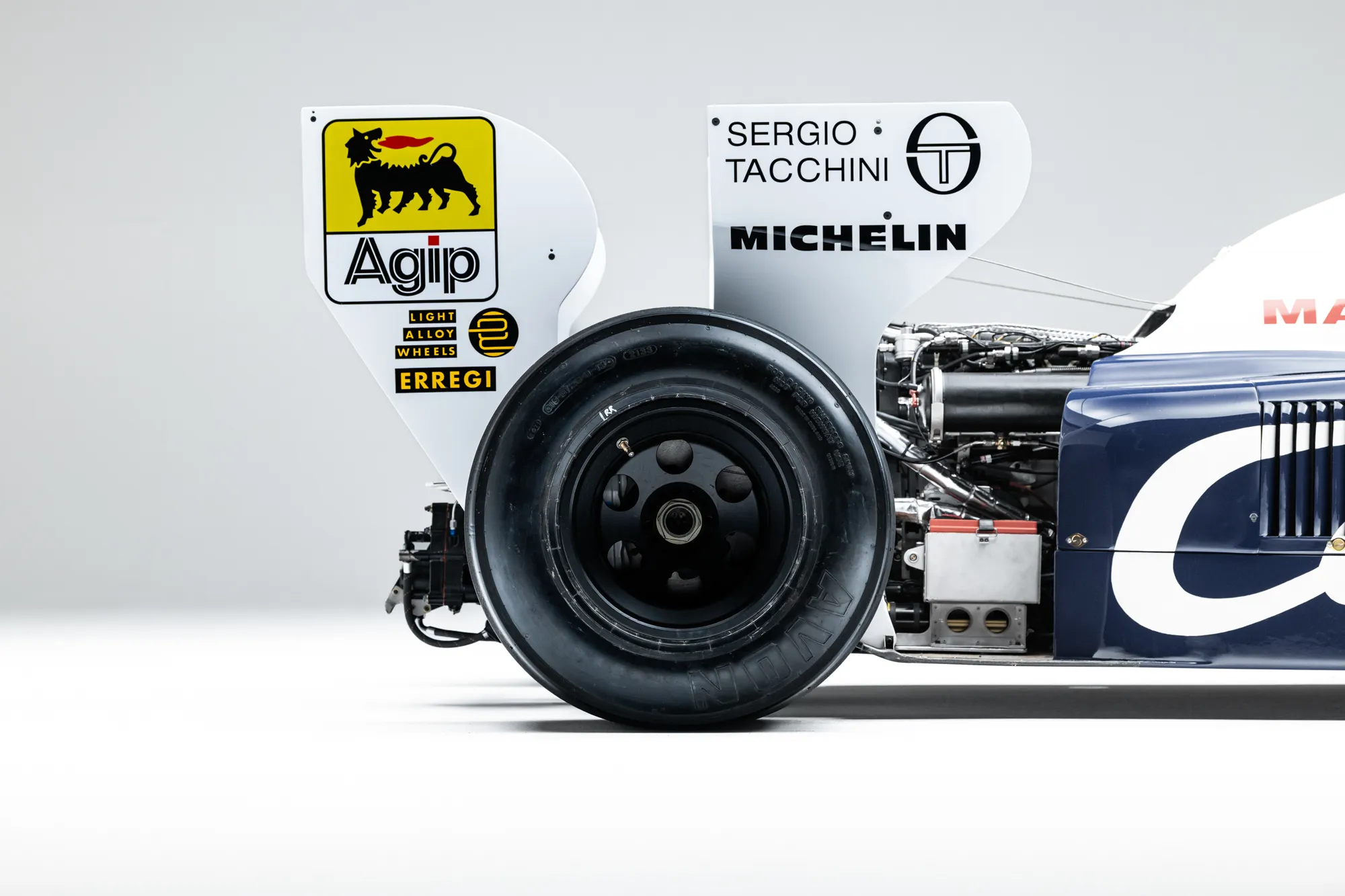

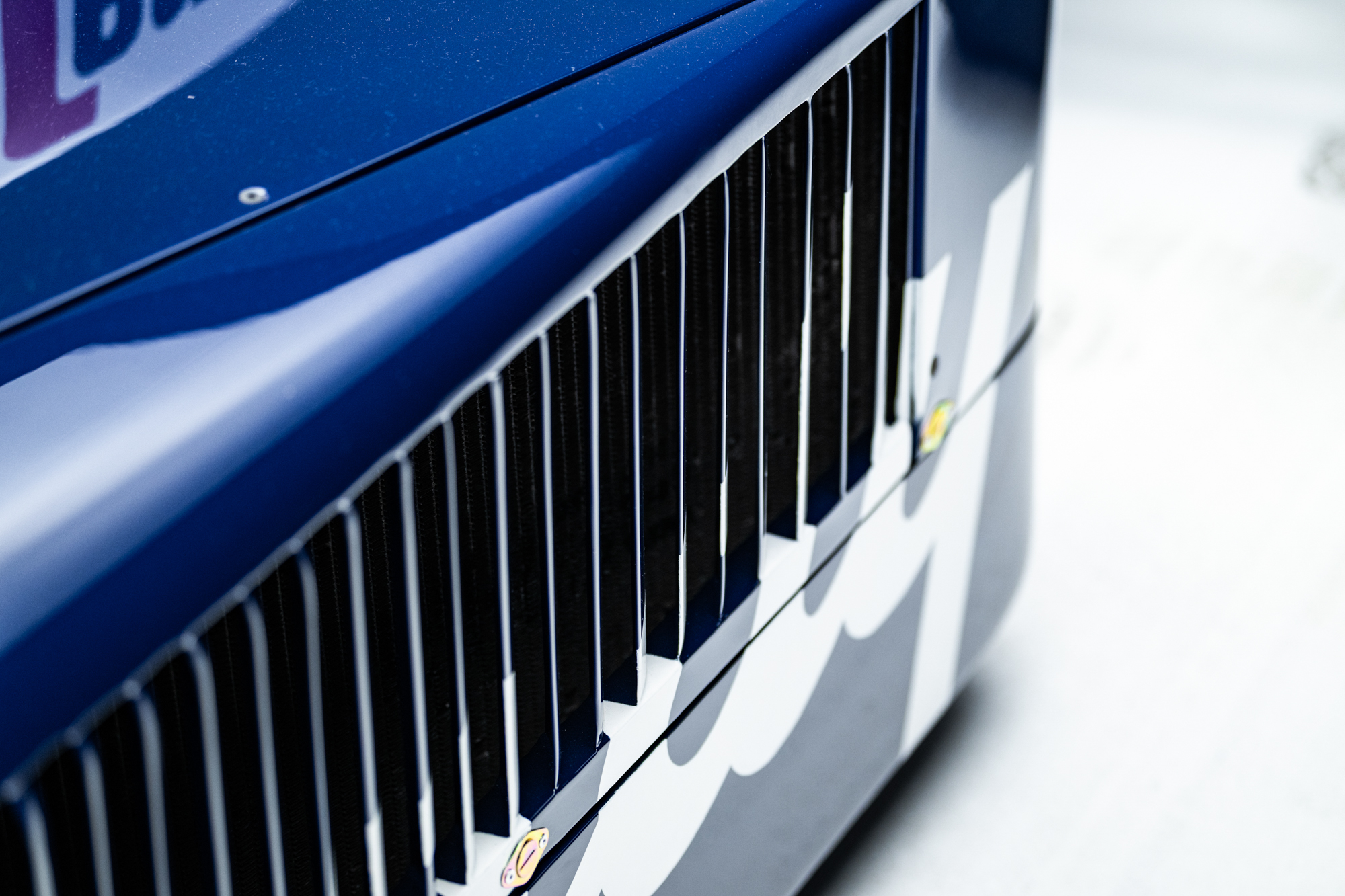

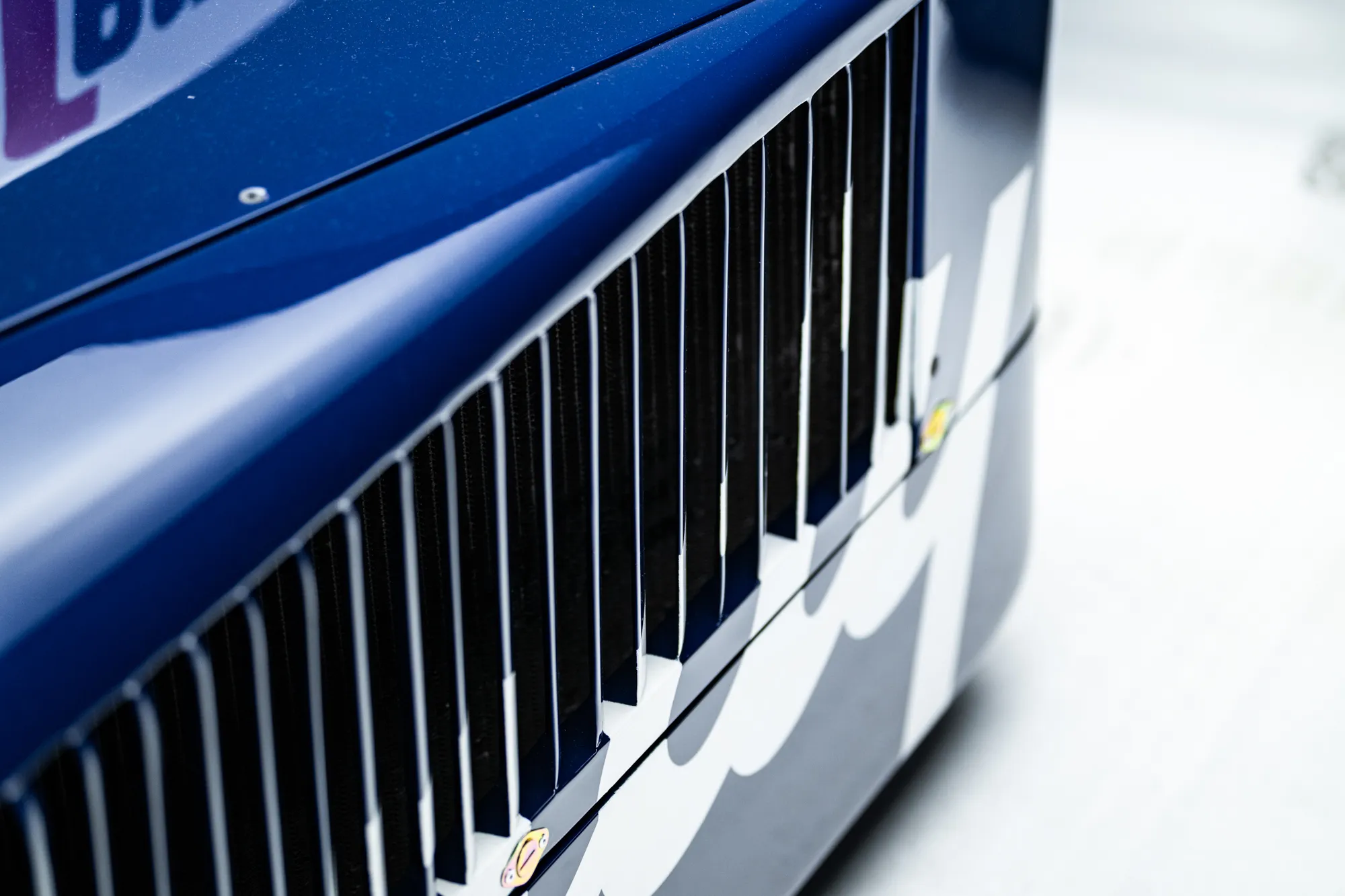

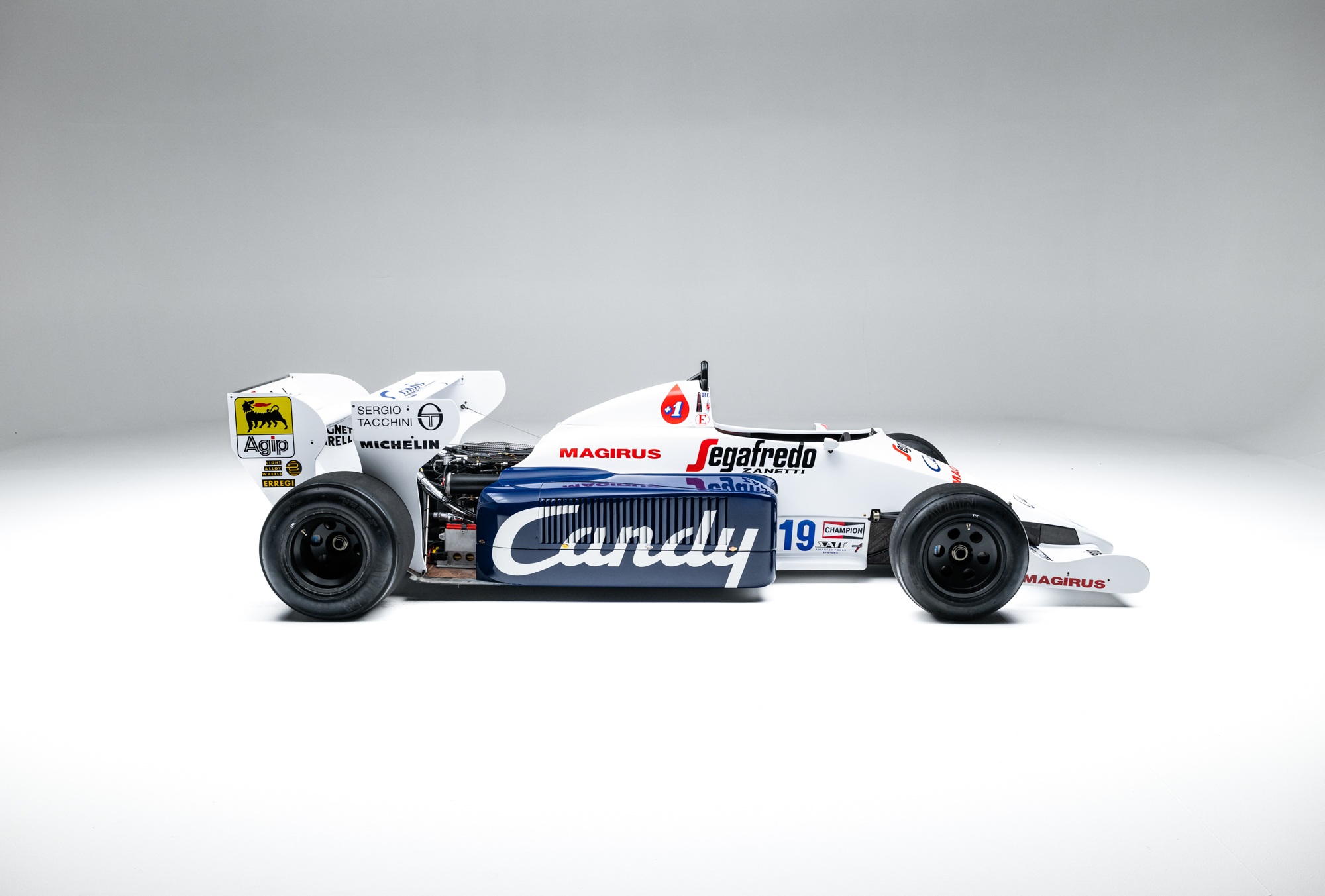

The TG184 uses a carbon‑fibre honeycomb monocoque that evolves the TG183B tub, with re‑laminated bulkhead areas to increase stiffness and improve component packaging. Wheelbase is approximately 2,800 mm, with a 1,765 mm front track and 1,676 mm rear track, giving a neutral footprint suited to the car’s medium and low‑speed focus. Longer sidepods house vertically mounted radiators and intercoolers with louvered upper exits, freeing the nose for a conventional one‑piece front wing and improving cooling margins for the Hart turbo installation. Underbody work centers on flat‑floor sealing via kicked‑up pod bottoms and fence elements ahead of the rear wheels to stabilize flow into the diffuser within the short wheelbase constraints. Carbon‑kevlar body panels and simplified cooling hardware reduce mass, allowing operation close to the minimum weight despite turbo and intercooler hardware.

Mechanical Specification

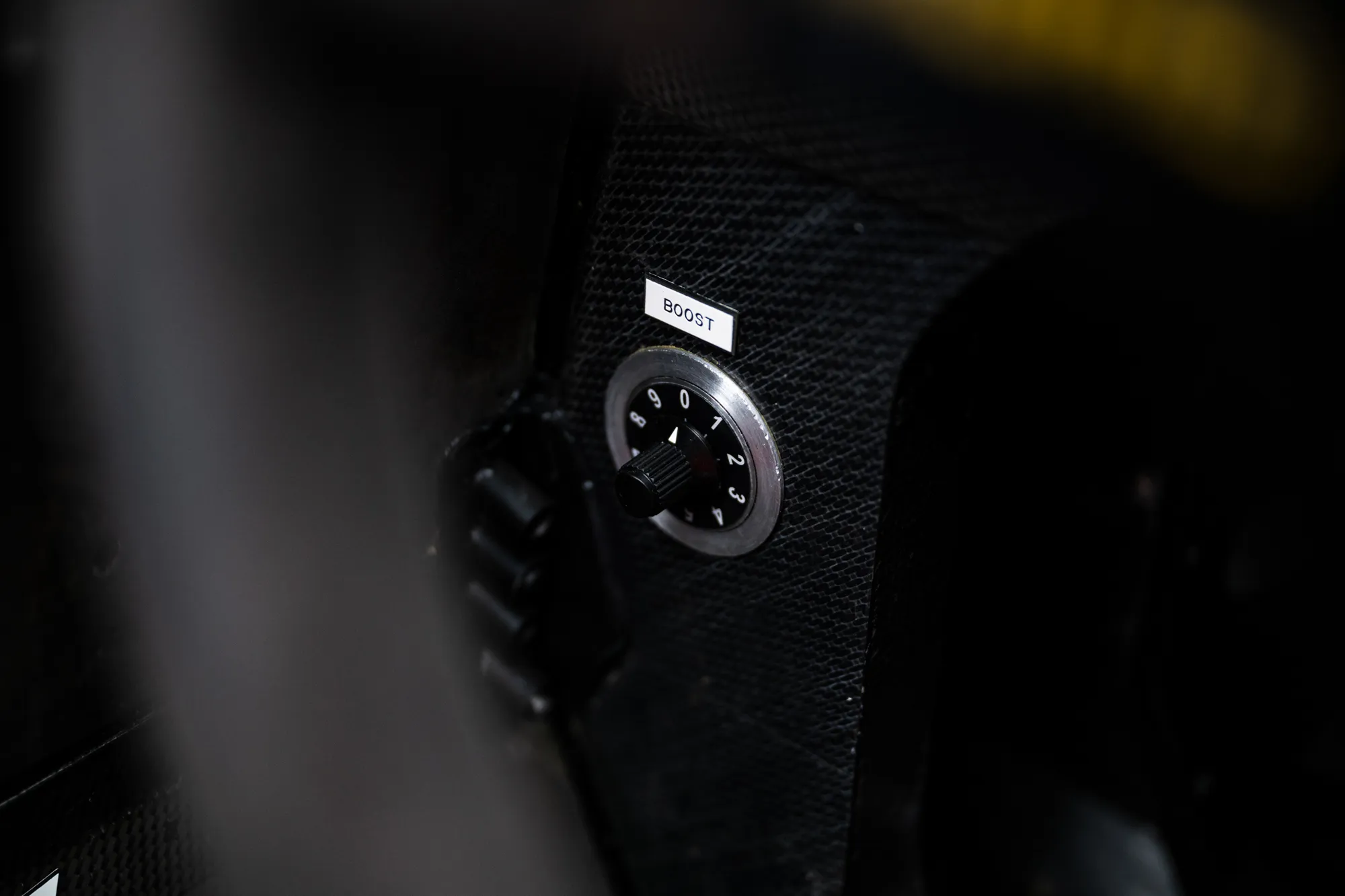

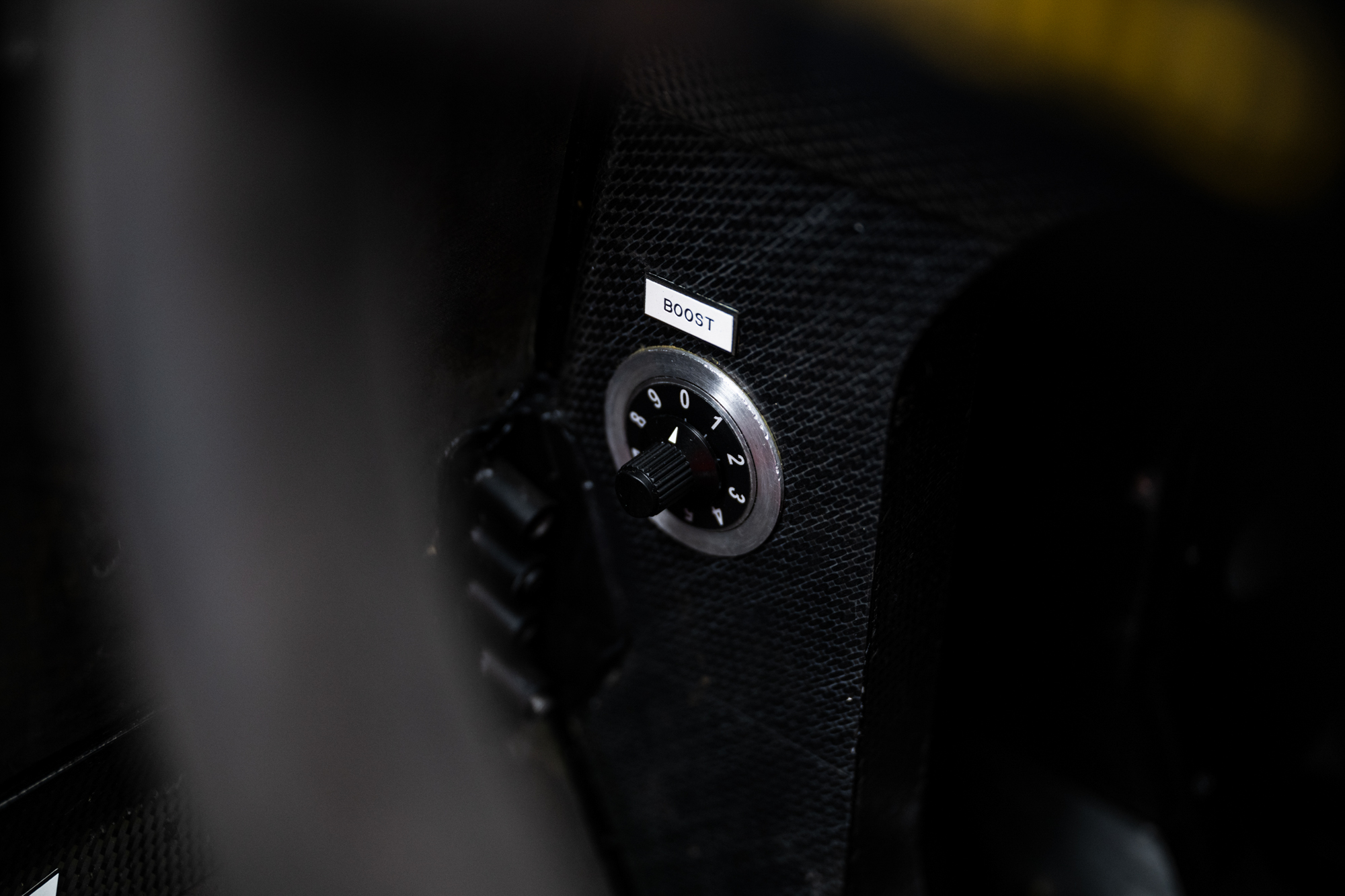

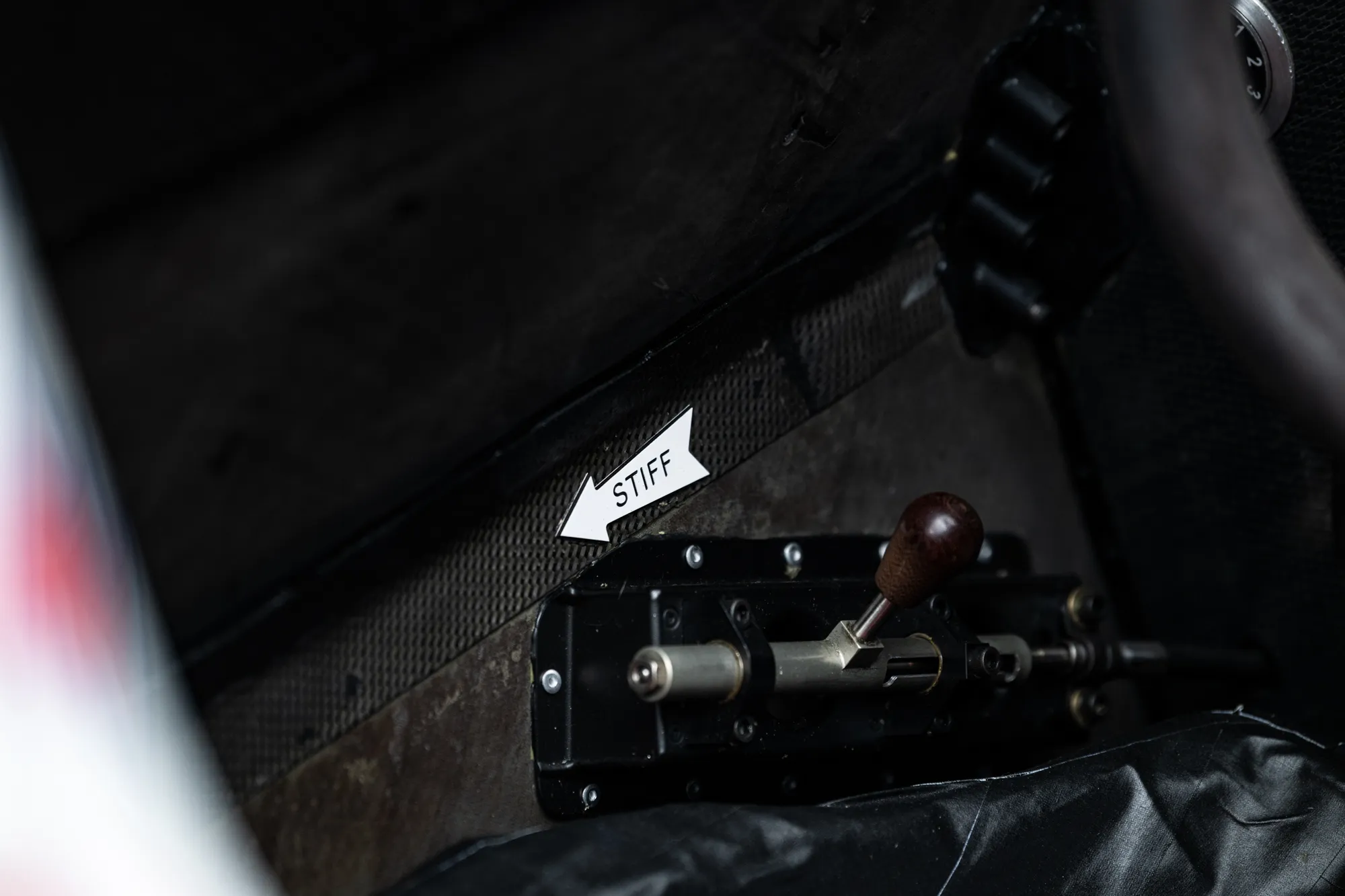

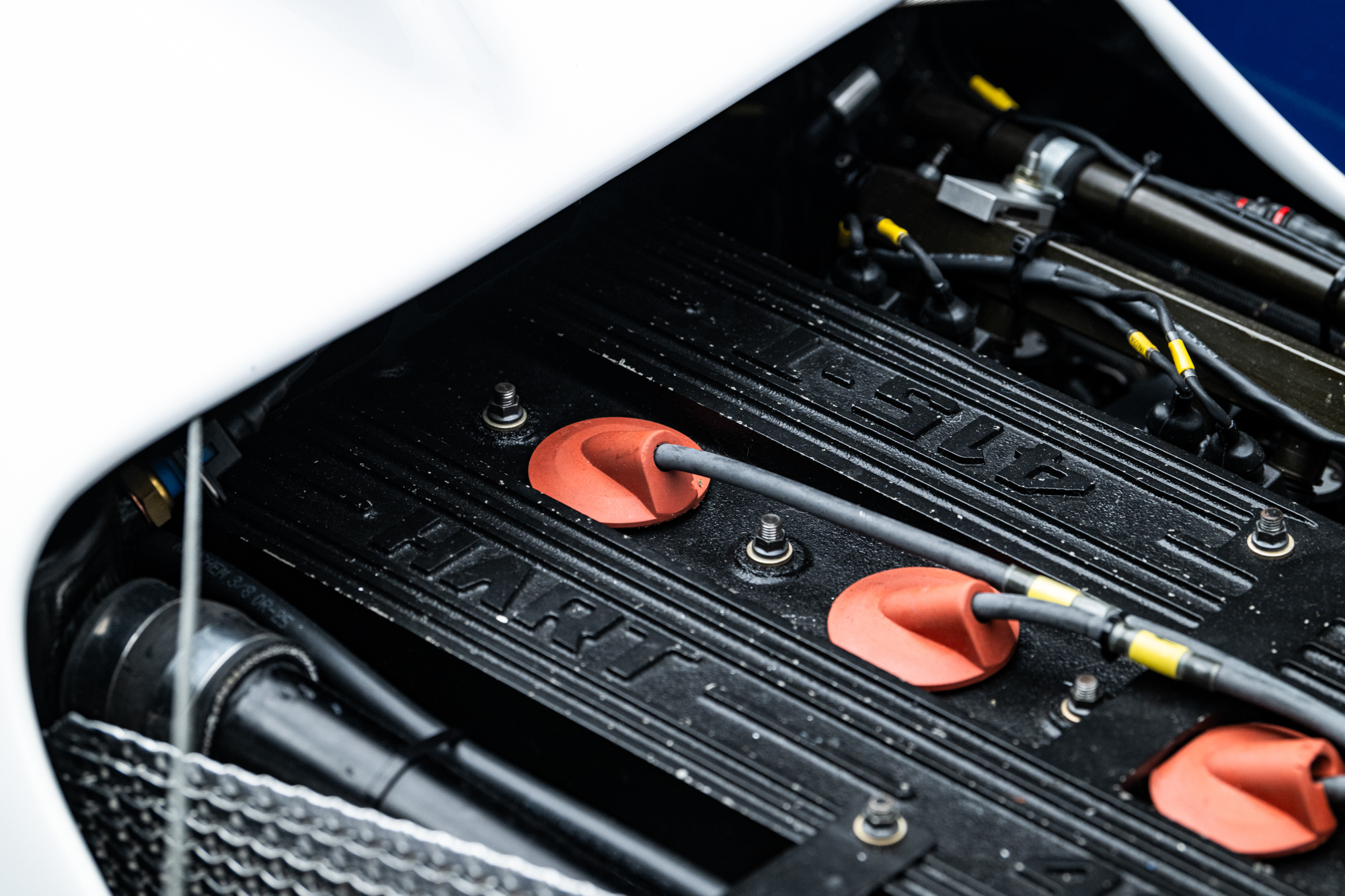

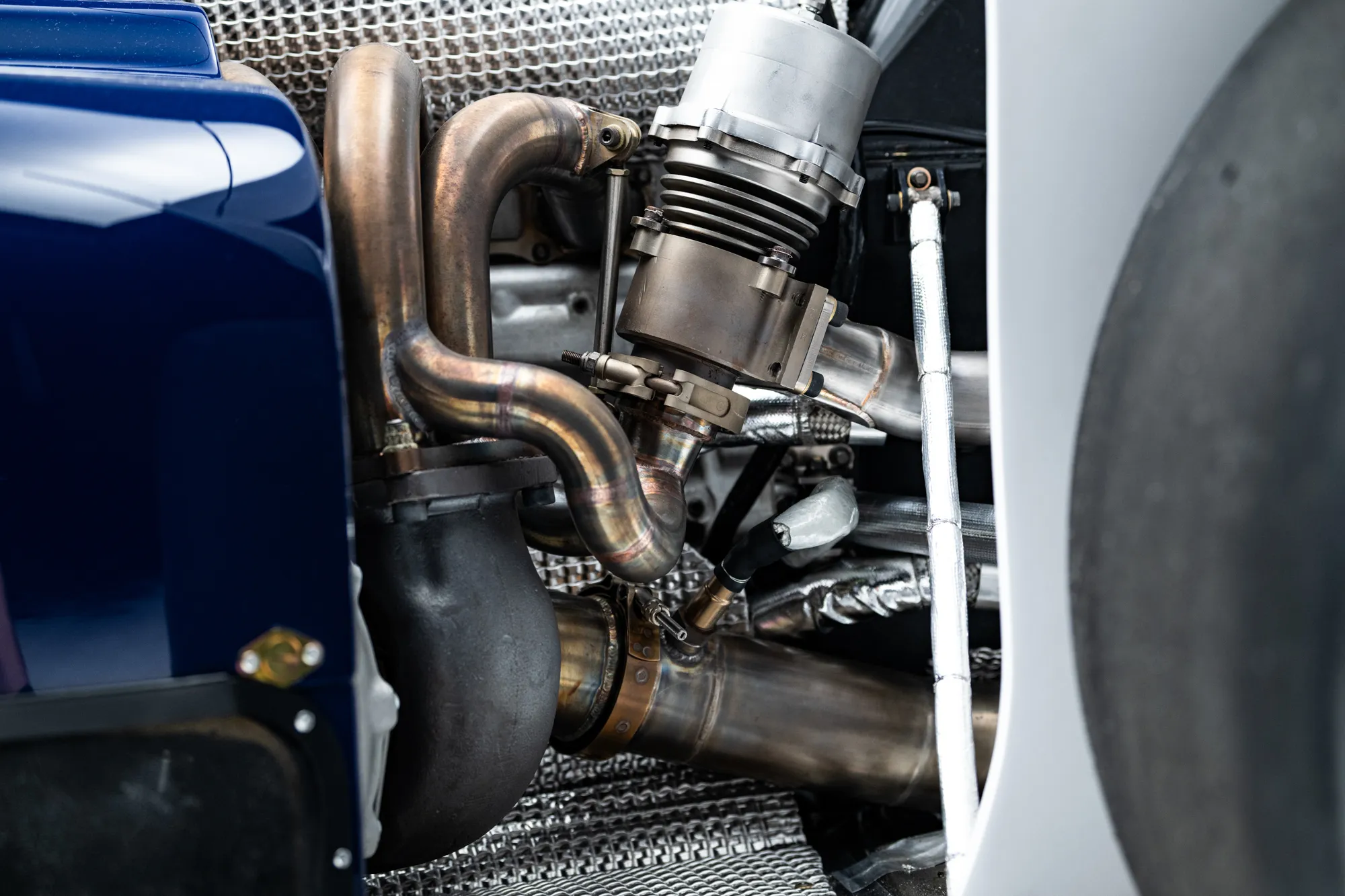

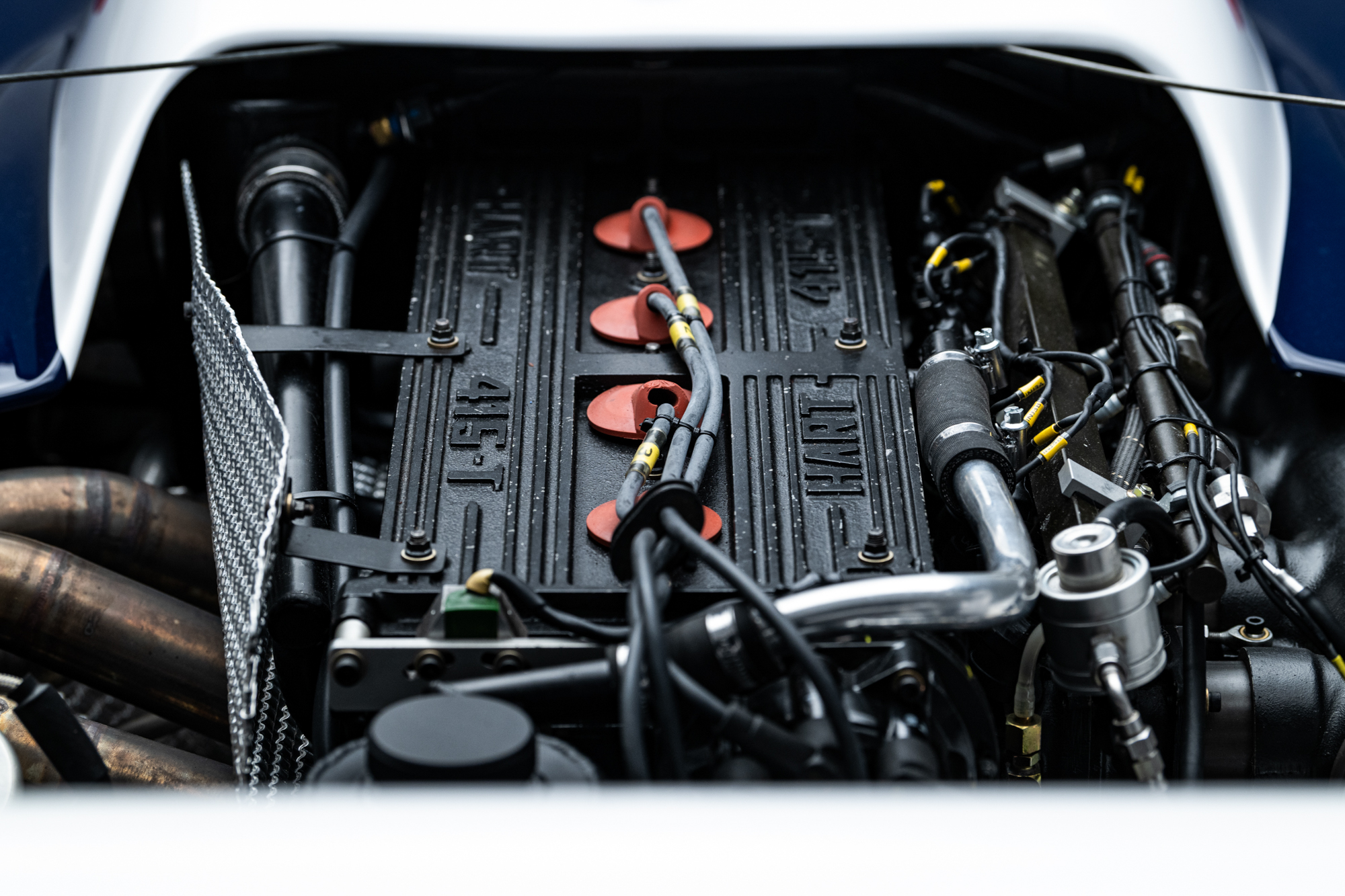

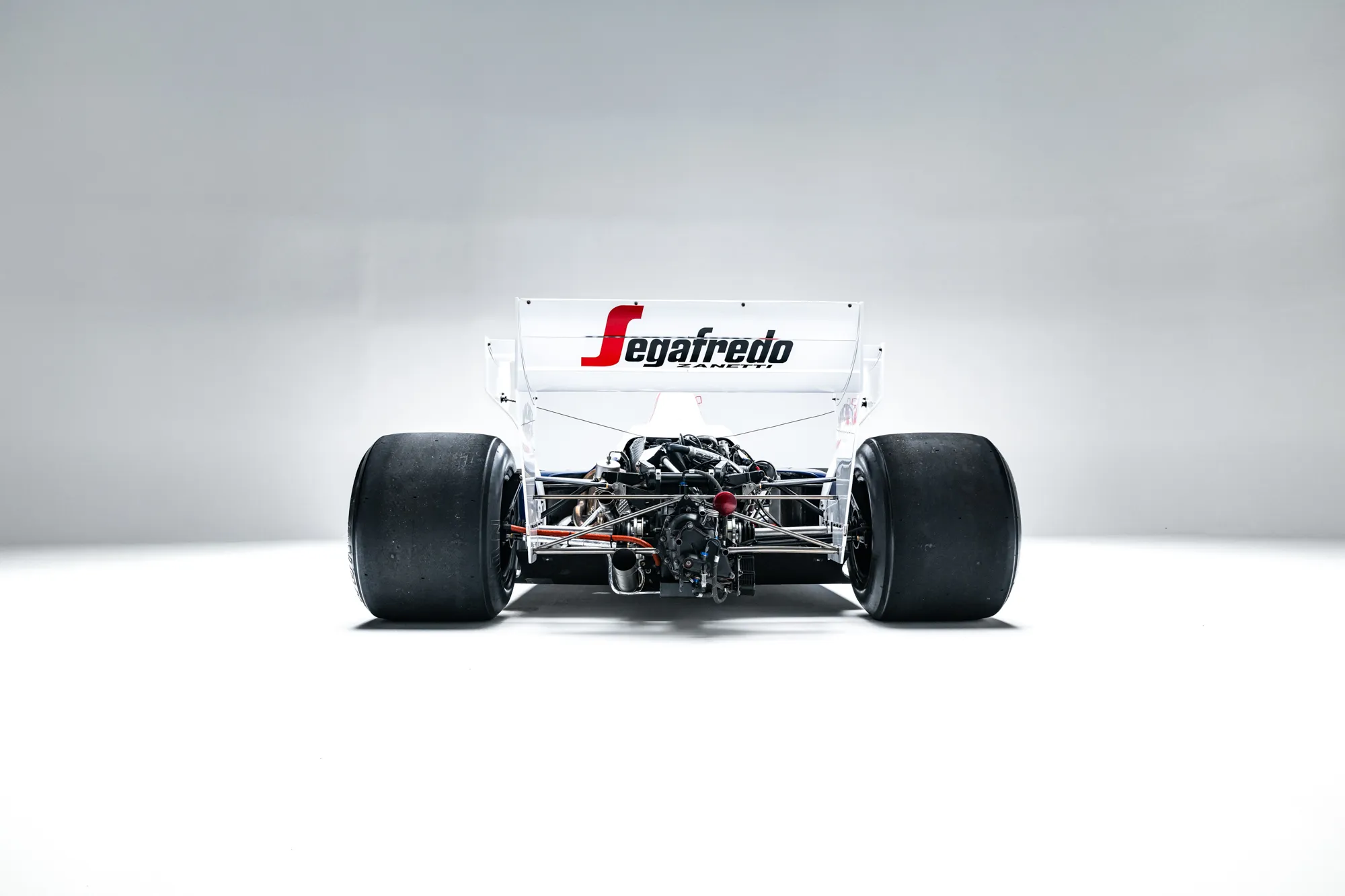

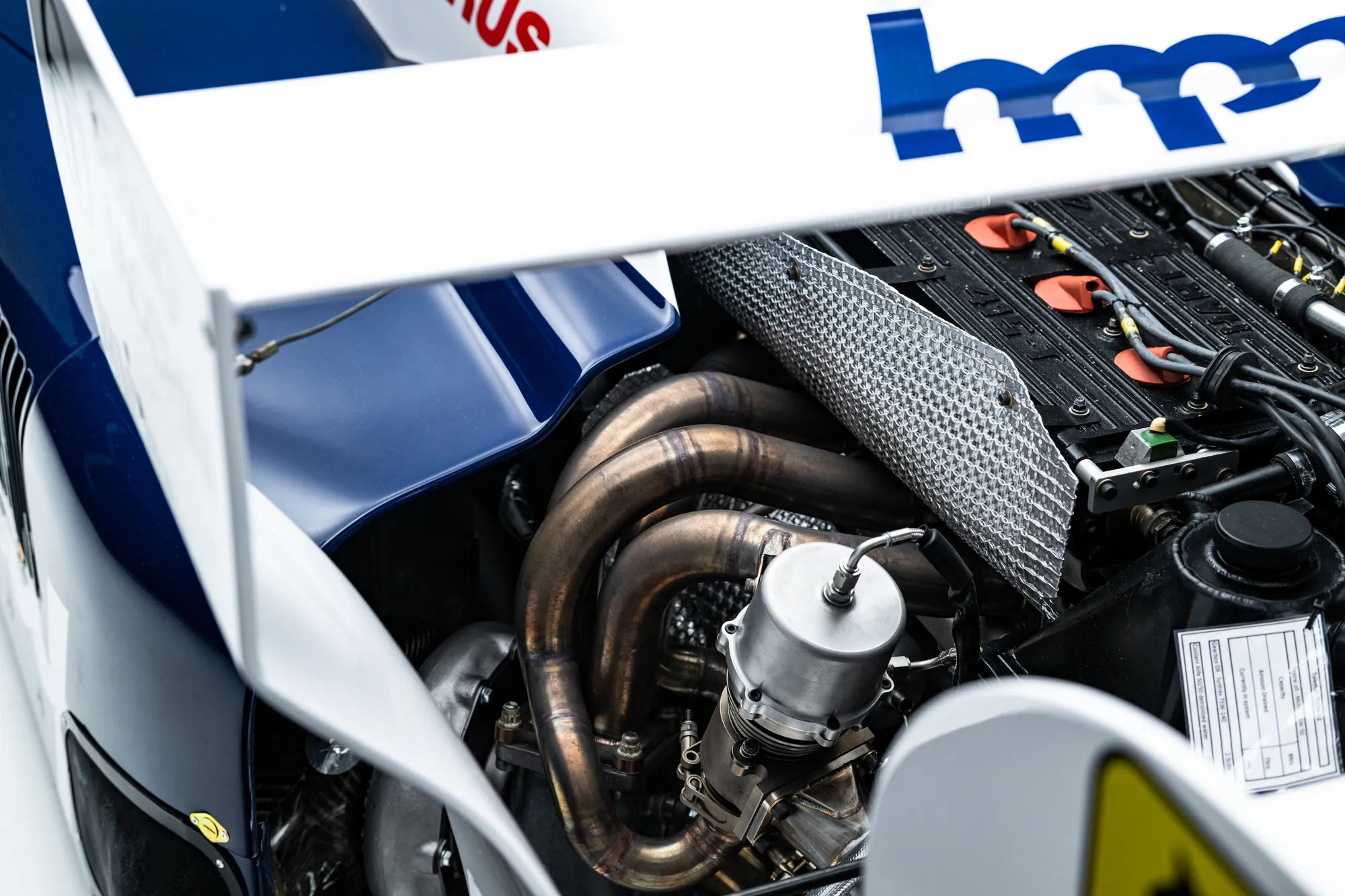

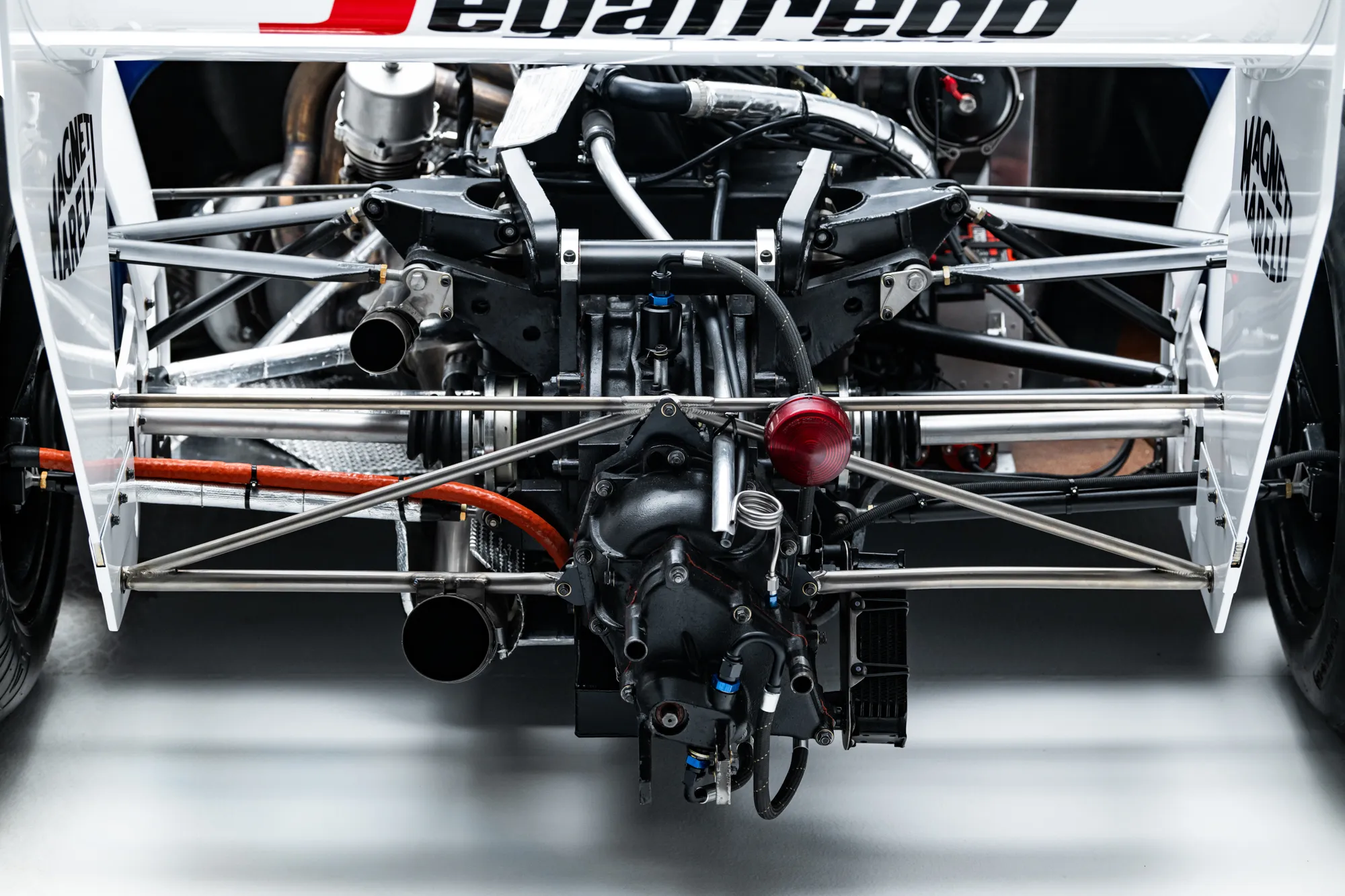

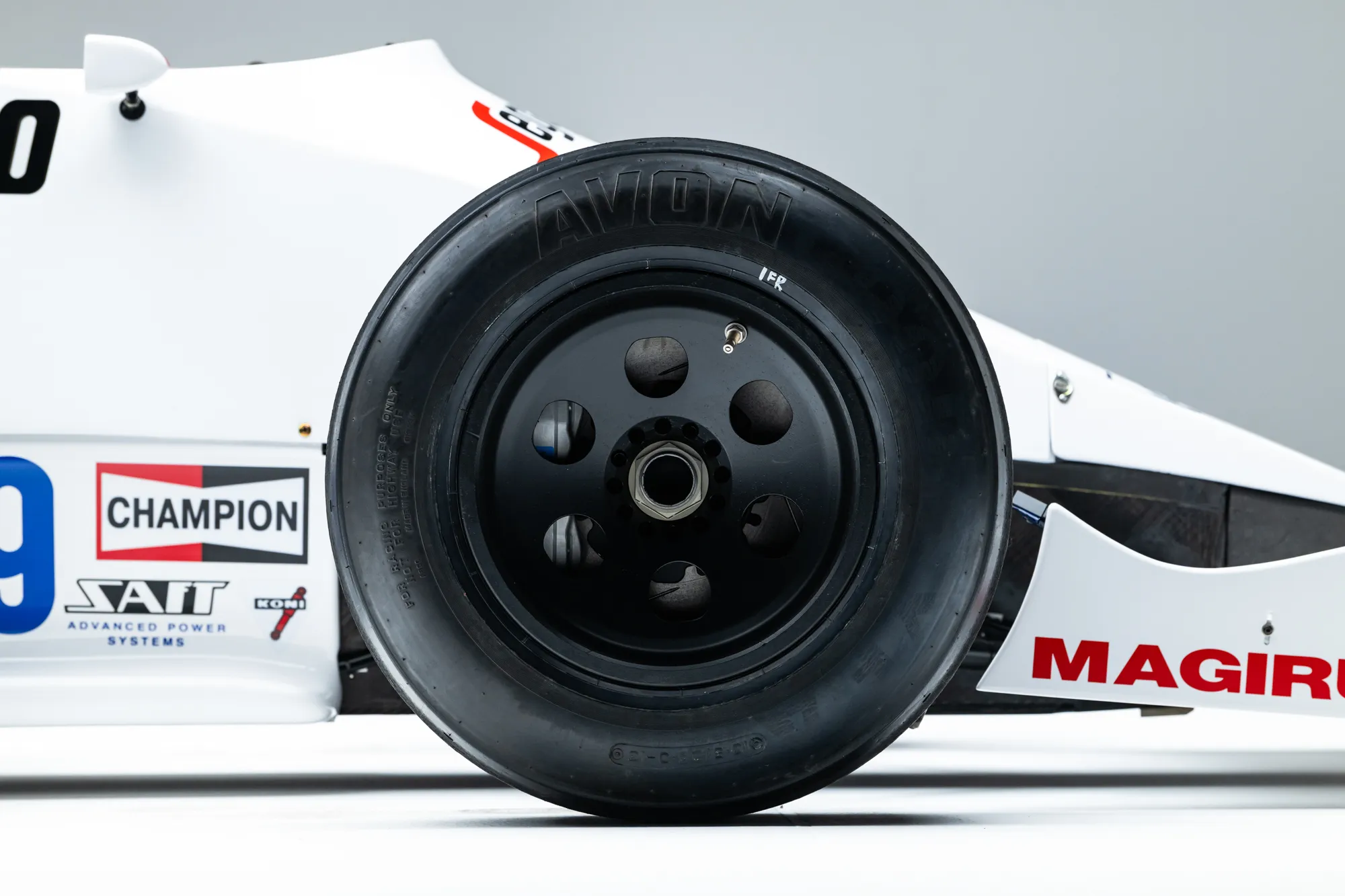

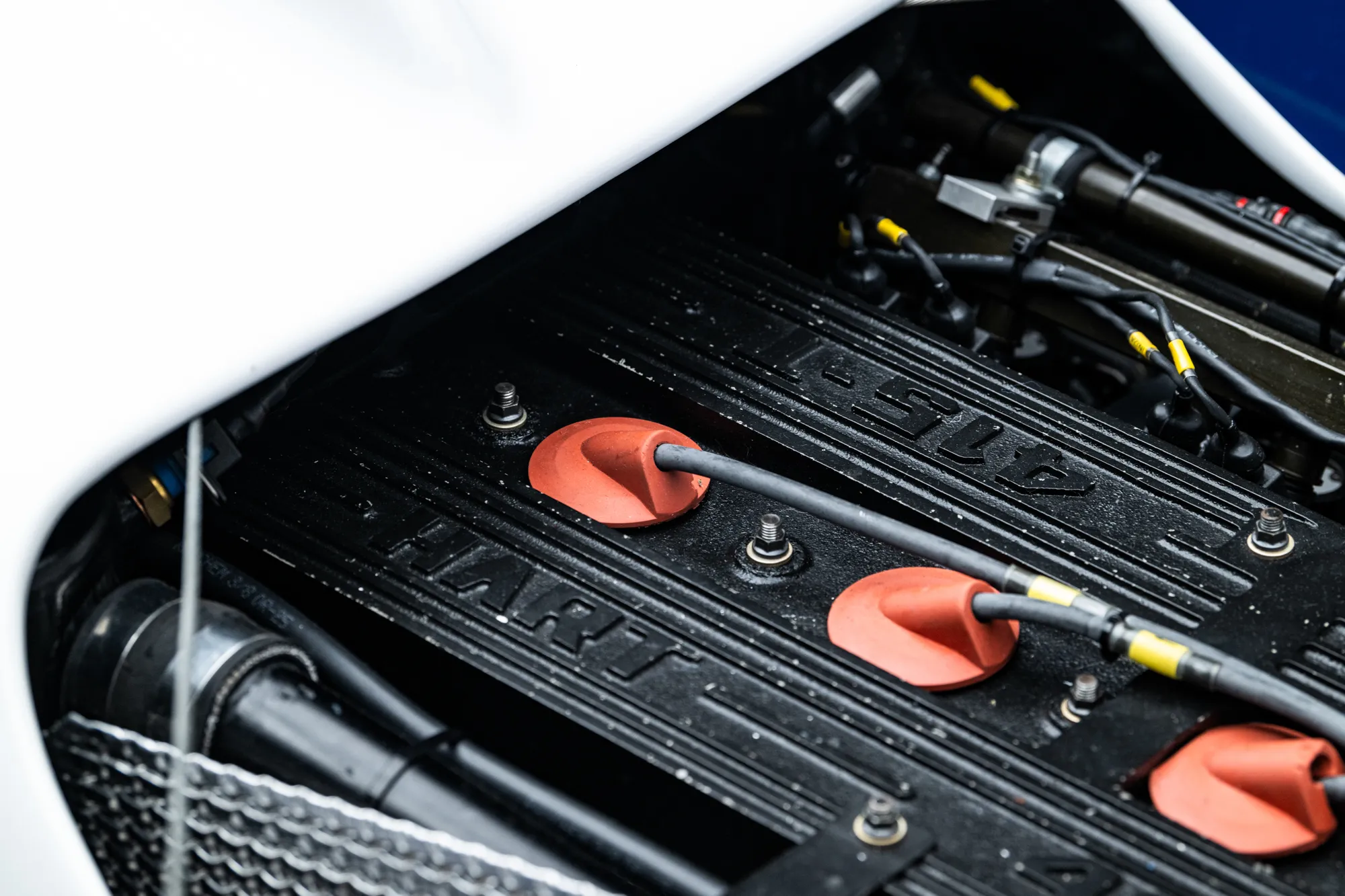

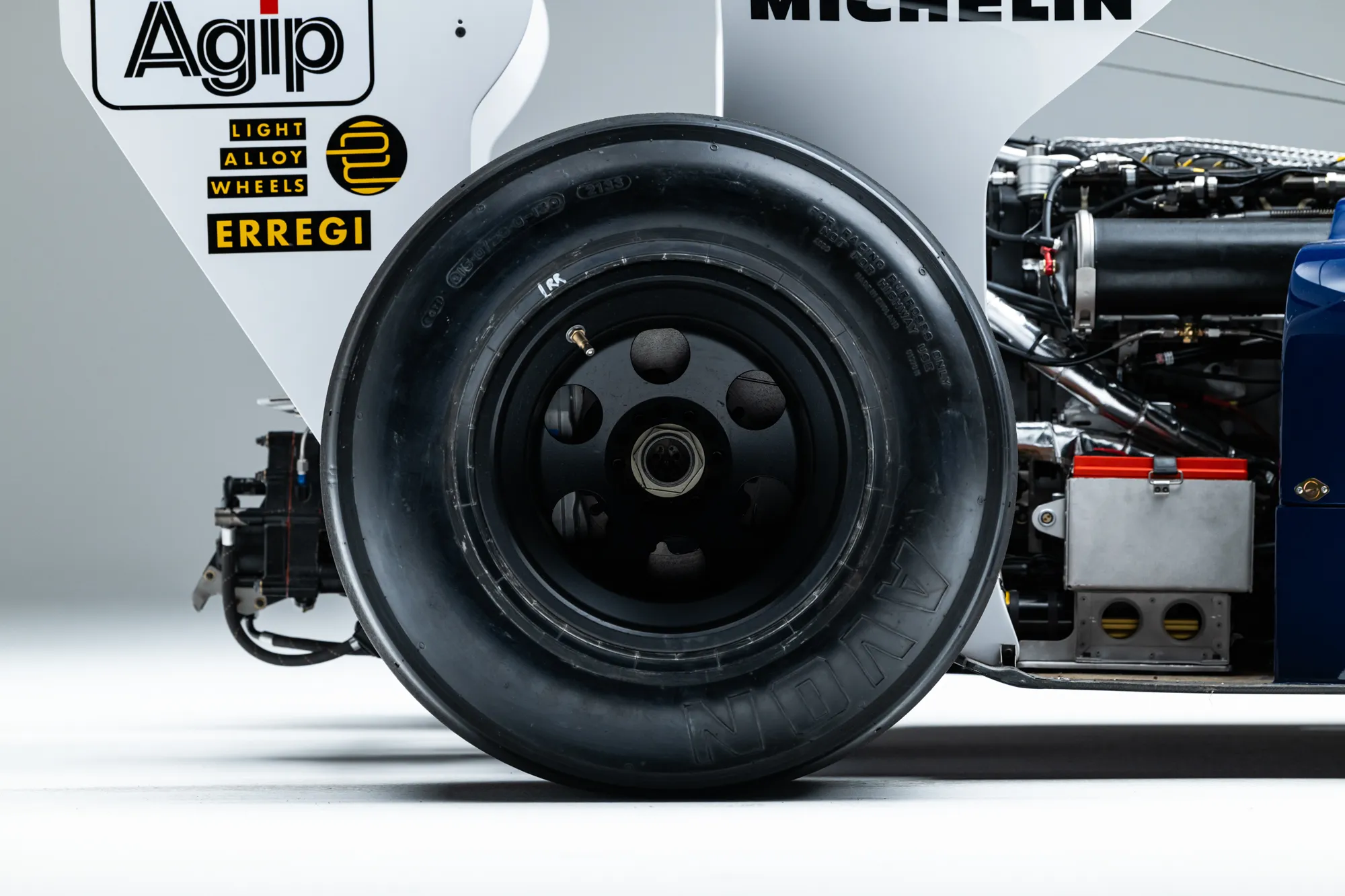

Power comes from the Hart 415T, a 1,459 cc turbocharged inline‑four mounted longitudinally as a stressed member behind the monocoque. Contemporary figures indicate approximately 600–650 hp in race trim, with up to around 750 hp available in qualifying with increased boost within pop‑off valve limits. Fuel is Agip, with relatively simple electronic strategies for boost and ignition management to balance performance against the 220‑liter race fuel allocation. The gearbox is a longitudinal Hewland five‑speed manual directly mated to the engine, with ratios frequently adjusted to keep the turbo in its effective boost range. Suspension uses double wishbones with pull‑rod actuation at the front and push‑rod at the rear, inboard coil‑over dampers, adjustable anti‑roll bars, ventilated disc brakes with period carbon options, and 1984‑season Michelin tyres following an early switch from Pirelli.

Provenance & Condition

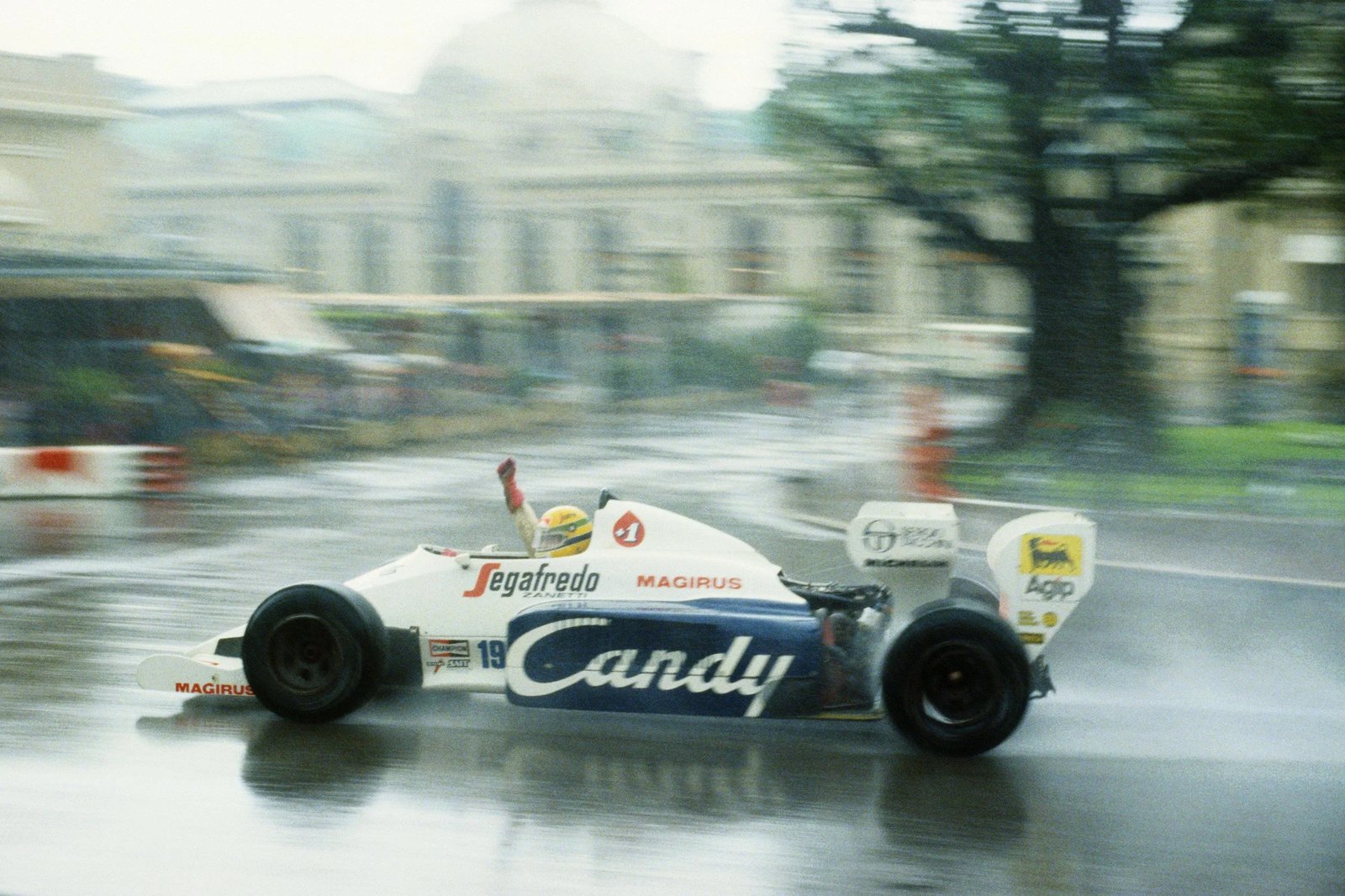

Period chassis logs identify TG184‑02 as Senna’s car for the 1984 Monaco Grand Prix, where it finished second, and the British Grand Prix at Brands Hatch, where it finished third. The same chassis later ran as spare at Hockenheim, Österreichring, Zandvoort, and Monza, with Stefan Johansson driving it to fourth place in the Italian Grand Prix. After the 1984 season it was gifted to Johansson in 1985 and has remained in private hands, with documentation indicating single‑owner custody from 1994. Chassis maintenance notes attribute most period retirements to Hart turbo ancillaries rather than tub integrity, with frequent turbo rebuilds and limited structural re‑bonding recorded. A later restoration by Paul Lanzante Ltd included an engine rebuild, new suspension, extensive body repair, and hand‑painted Candy branding by Gabriel de Meurville to return the car to its 1984 Monaco/Brands presentation.

Collector Positioning

As one of a small number of TG184 tubs built by Toleman and one of the few surviving examples with documented front‑line use, chassis 02 occupies a defined place in early carbon‑tub, turbo‑era F1 collecting. Its race history links directly to Senna’s first Formula One podiums at Monaco and Brands Hatch, as well as Johansson’s fourth place at Monza, giving it continuity across multiple drivers with subsequent top‑team careers. Auction and event records emphasize the car’s largely preserved carbon structure, its use as a reference example at historic displays, and its position as a benchmark for TG184 restoration accuracy. The documented Lanzante restoration to 1984 specification, combined with long‑term private ownership and clear chassis allocation for key races, supports its standing among period Hart‑powered turbo cars. Within the broader collector landscape it aligns with interest in mid‑1980s turbo‑charged single‑seaters that illustrate the transition from independent constructors like Toleman to manufacturer‑backed entities such as Benetton.
